Job Dashboard Overview

The Job Dashboard provides a consolidated view of all jobs submitted across clusters, users, and applications. It helps track job progress, failures, and system utilization.

---

Step 1: Access the Job Status Page

Navigate to Jobs > Job from the sidebar.
This opens the main dashboard with overall job summaries, trends, and details.

---

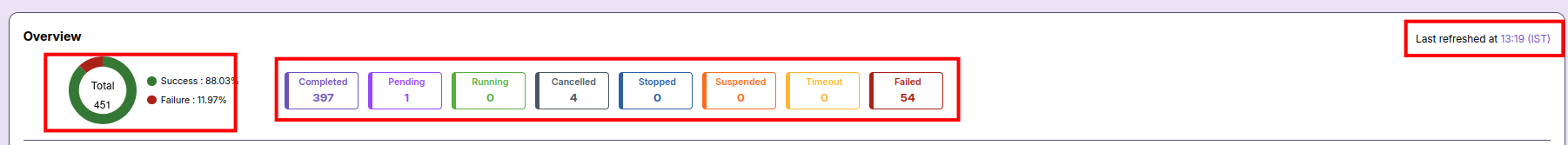

Step 2: Overview Section

• Total Jobs → Count of all jobs submitted (e.g., 450)
• Success % / Failure % → Overall job health
• Completed / Pending / Running / Cancelled / Stopped / Suspended / Timeout / Failed → Status-wise breakdown of jobs
• Last Refreshed at → Shows the timestamp of the most recent data update on the screen.

This provides a quick health snapshot of the cluster workload.

---

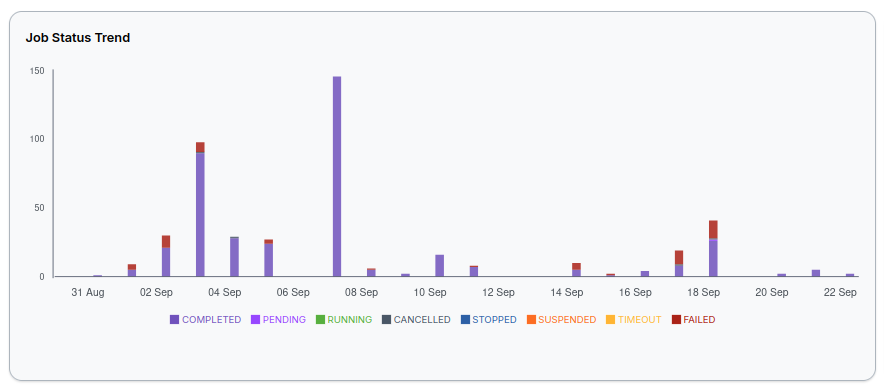

Step 3: Job Status Trend

A timeline chart showing daily job counts by status (Completed, Pending, Failed, etc.).
Use this to track job patterns over time and spot unusual failure spikes.

---

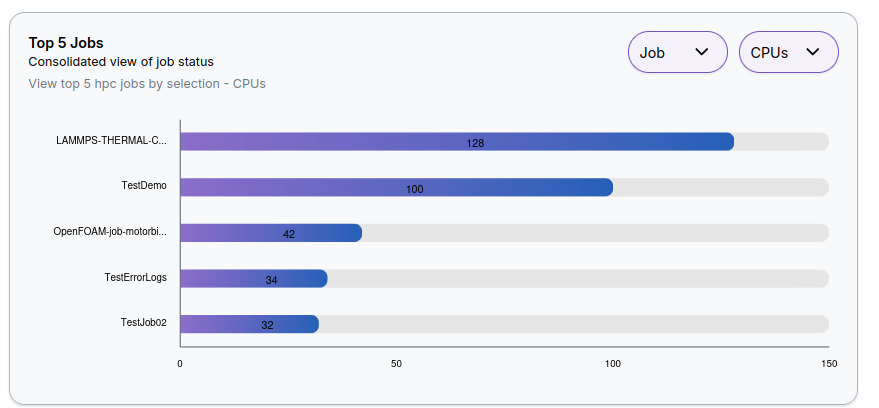

Step 4: Top 5 Jobs

A bar chart listing jobs that consumed the most resources.

• Ranked by CPU usage (default, can switch metric from dropdown)
• Displays job names with corresponding load

This helps identify high-impact jobs for optimization.

---

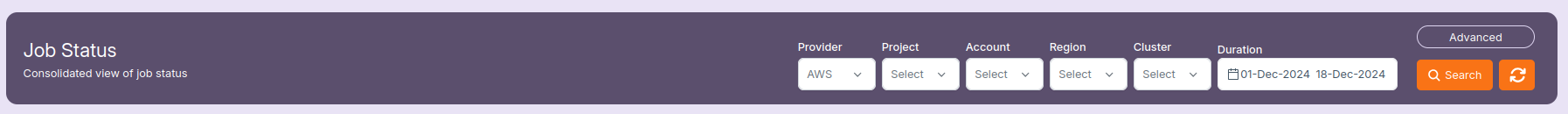

Step 5: Filters (Top Panel)

You can refine the dashboard view by selecting:

• Provider → AWS, GCP, etc.
• Account → Project/account scope
• Region → Cloud region
• Cluster → Target cluster
• Type → Cluster type
• Duration → Date range for job history

Click Search to apply filters.

---

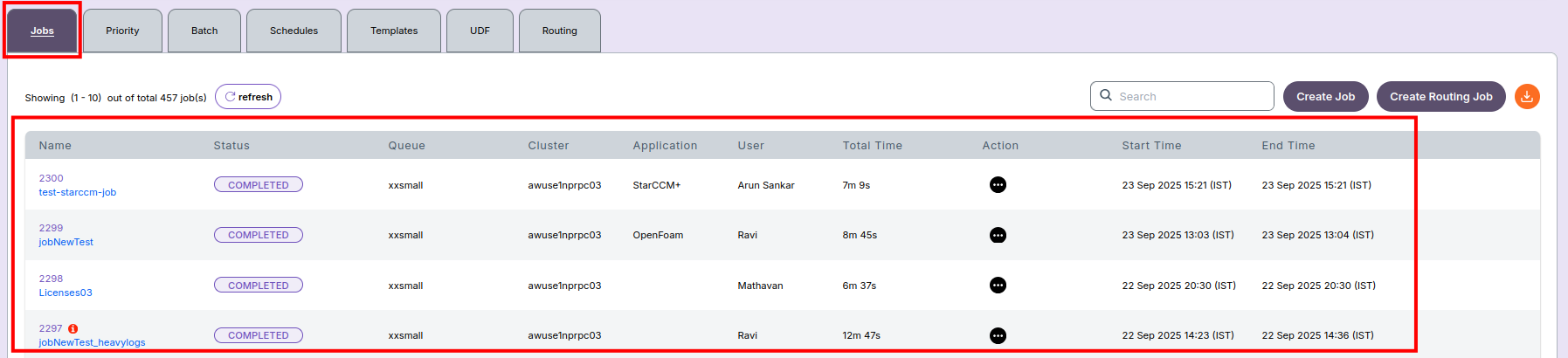

Step 6: Job Table (Detailed View)

The job table lists detailed information for each job:

• Name → Job ID or label
• Status → Current state (Completed, Failed, etc.)
• Queue → Queue used for job submission
• Cluster → Target cluster
• Application → Application executed (e.g., OpenFOAM, LAMMPS)
• User → Submitted by
• Total Time → Runtime duration
• Action → Job actions (logs, rerun, etc.)
• Start / End Time → Job execution timestamps

---

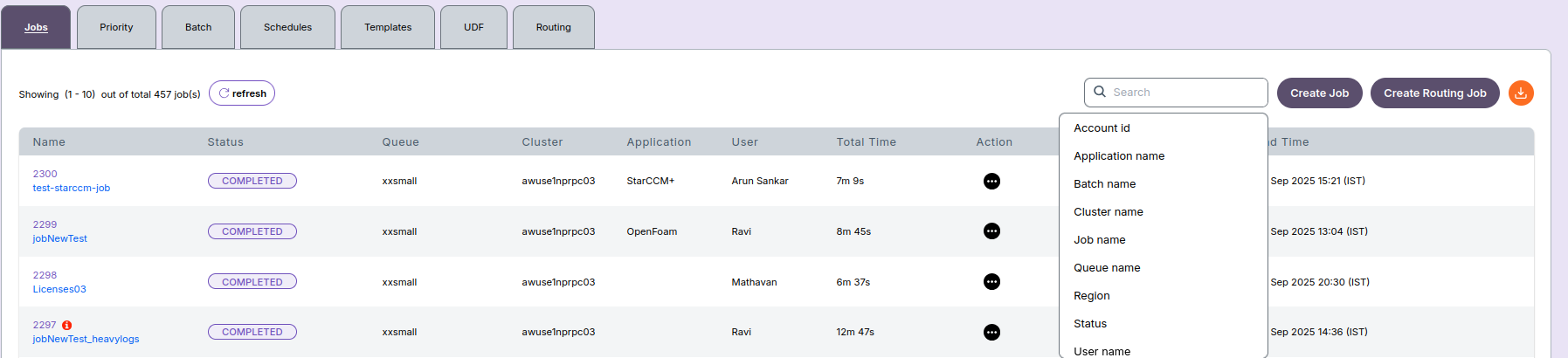

🔎 Search Options

The search field allows you to quickly locate jobs using multiple filters:

1. Select a Search Field
   Available options include:
2. Account ID
3. Application Name
4. Batch Name
5. Cluster Name
6. Job Name
7. Queue Name
8. Region
9. Status
10. User Name

---

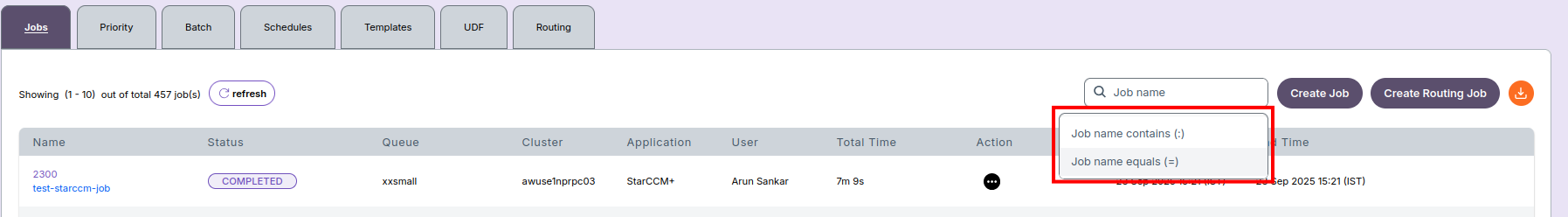

1. Choose Search Type (for Job Name)

2. Contains (:) → Returns jobs that include the entered text

3. Equals (=) → Returns jobs that exactly match the entered text

---

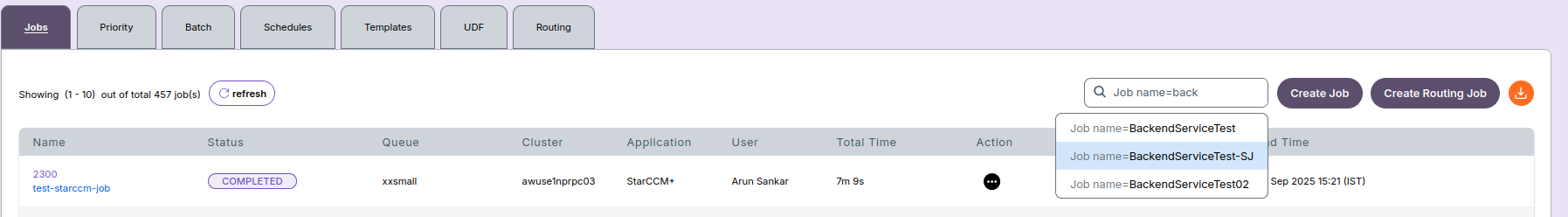

1. Enter or Select Job Name
2. When typing a job name, the system lists matching results.
3. You can select directly from the list (no need to type full name).
4. Alternatively, use free-text search: entering partial or relevant words will display all matching jobs.

This makes it easy to locate jobs quickly without knowing the full job ID.

---

Notes
• Use Create Job for new submissions.
• Use Create Routing Job for workflow-based submissions.
• If a job is stuck or failing repeatedly, check logs or contact the Admin.
